Pneumatic quick installation of three ball valve
Pneumatic quick installation of three ball valve
公稱壓力：PN1.0MPa
鏈接方式：Clamp quick fit connection
閥體材質(zhì)：Stainless steel 304, 316, 316L
工作形式：Single acting (spring return)
Main Performance Parameters
Connection mode | DN15～100 mm |
Nominal pressure | PN1.0MPa |
Structure form | T-type and L-type tees |
Seat tightness | (PTFE)≤180℃ Polytetrafluoroethylene (PTFE) 180 ℃ or less |
Link way | Clamp quick fit connection |
Body material | 304、316、316L Stainless steel 304, 316, 316L |
Ball core material | 304、316、316L Stainless steel 304, 316, 316L |
Role form | Single acting (spring return) |
Control mode | Cut type (switch control), the external regulation (4-20 mA signal regulating functions) |

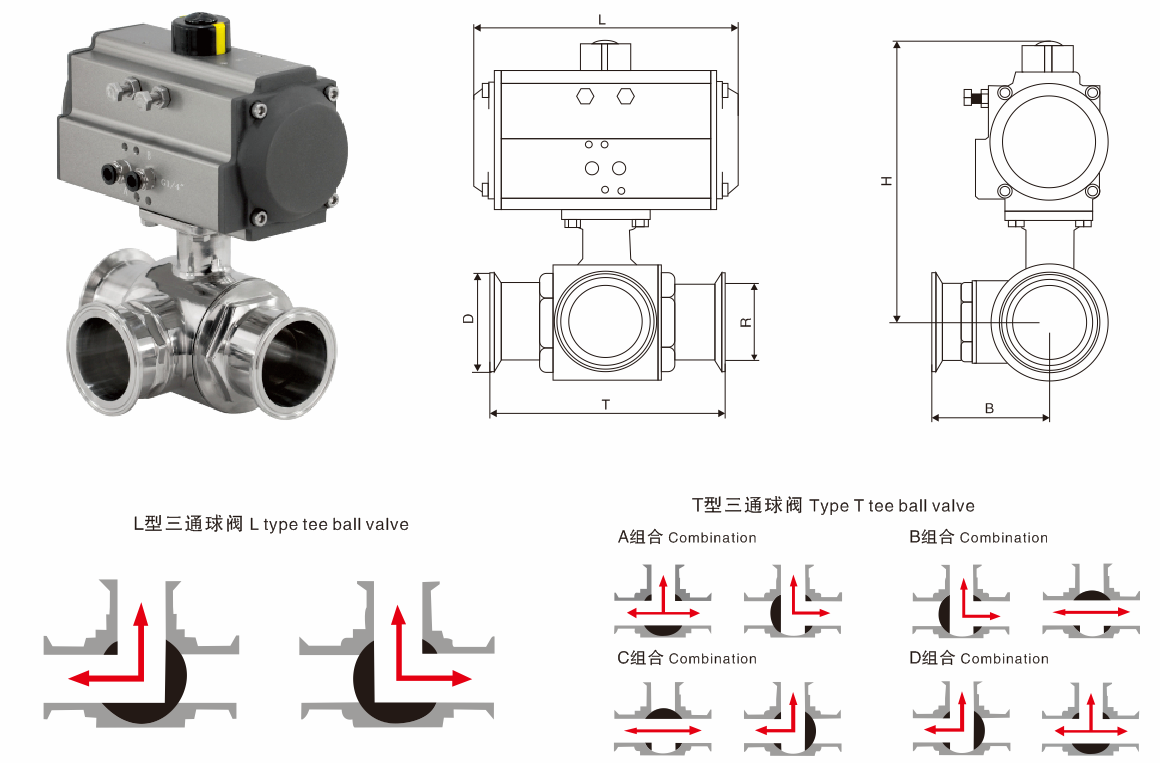

Main Outline Connection Dimention
DN(mm) | Pressure of dimension label: 1.6MPa unit :mm | Pneumatic actuator configuration | |||||
L | H | T | D | R | B | ||
15 | 147 | 149 | 108 | 50.5 | 19 | 73.5 | AT-52 |
20 | 147 | 149 | 120 | 50.5 | 25 | 73.5 | AT-52 |
25 | 147 | 156 | 128 | 50.5 | 32 | 73.5 | AT-52 |
32 | 168 | 190 | 144 | 50.5 | 38 | 84 | AT-63 |
40 | 168 | 196 | 168 | 64 | 51 | 84 | AT-75 |
50 | 210 | 228 | 180 | 77.5 | 63 | 105 | AT-83 |
65 | 262 | 270 | 220 | 91 | 76 | 131 | AT-92 |
80 | 265 | 301 | 244 | 106 | 89 | 132.5 | AT-105 |
100 | 300 | 350 | 270 | 119 | 102 | 150 | AT-125 |
