Cylinder type

 GT series, AT series

Valve type

 Center line butterfly valve

Work way

Double acting piston type, single acting spring return type

Valve type

GIQ

Air pressure

4~8Bar

Connection mode

 JB919 clamp flange

Working medium

Dry and clean without corrosive gas

Nominal diameter

DN40～1200mm

Working temperature

 Room

temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings)

Nominal pressure

105～1.3X10- 4 Pa

 High temperature

type: - 20 ℃ to 160℃ (fluorine rubber O-rings)

Body material

Carbon steel, stainless steel 304/316

Range of motion

0~90°±5°

Butterfly material

Carbon steel, stainless steel 304/316

Interface thread

GT52~GT83 G1/8"

Seat tightness

Nitrile rubber, fluorine rubber, etc

GT110~GT210 AT52~AT210 G1/4"

Suitable temperature

EPDM≤80℃ Fluorine rubber≤150℃

Valve position signal

Locator: 4~20mA/reply: full ON/OFF signal

Applicable medium

 Air

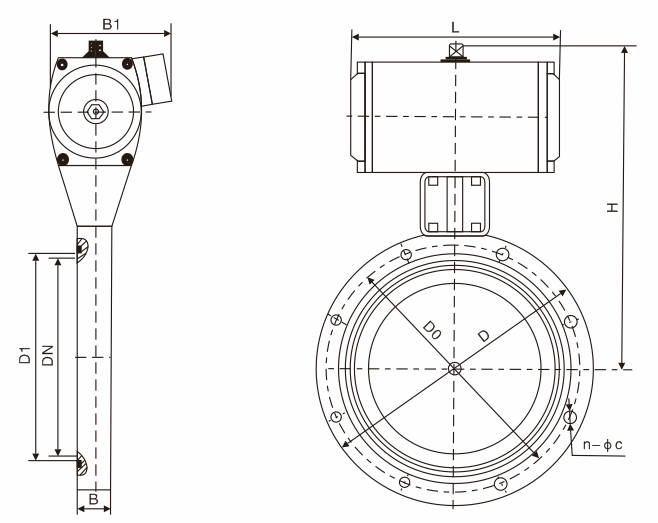

GIQ-40

40

85

70

44

22

162

90

104

4-φ7

GIQ-50

50

110

90

55

22

175

90

104

4-φ7

GIQ-65

65

125

105

70

26

198

102

140

4-φ9

GIQ-80

80

145

125

85

30

208

102

140

4-φ9

GIQ-100

100

170

145

105

30

220

102

140

4-φ12

GIQ-150

150

220

195

156

35

272

115

164

8-φ12

GIQ-200

200

275

250

208

40

330

205

190

8-φ12

GIQ-250

250

330

300

258

45

335

205

190

8-φ14

GIQ-300

300

380

350

308

55

426

152

247

8-φ14

GIQ-400

400

500

465

410

60

520

180

308

8-φ18

GIQ-500

500

600

565

510

80

643

220

378

12-φ18

GIQ-600

600

710

670

610

100

760

270

524

12-φ21

GIQ-800

800

920

880

815

130

962

320

648

20-φ21

GIQ-1200

1200

1440

1404

1280

150

1360

385

1480

36-φ19
