Electric flange soft seal butterfly valve
Electric flange soft seal butterfly valve
公稱通徑：DN40~500mm
公稱壓力：PN1.0、1.6MPa
環(huán)境溫度：-30℃～60℃
適用溫度：EPDM≤80℃；NBR≤68℃
閥體材質(zhì)：Ductile Iron,Carbon Steel,Stainless Steel
適用介質(zhì)：Water,air and natural gas
Main Performance Parameters
Technical parameters of the configured electric actuator | Valve body parameters | ||
Power Supply | AC110、220、380V/DC24、220V | Nominal diameter | DN40~500mm |
Output torque | 50N·m~2000N·m | Nominal pressure | PN1.0、1.6MPa |
Optional function | Switch type,contact type,opening signal,intelligent type | Valve shaft material | Carbon steel, 304/316/316L stainless steel |
Range of motion | 0~90°±5° | Body material | Ductile Iron,Carbon Steel,Stainless Steel |
Action time | 30 s /60 s | Material of ball plate | Ductile Iron,304/316/316L Stainless steel, nylon |
Ambient temperature | -30℃~+60℃ | Seat Tightness | EPDM,NBR,Wear resistant rubber |
Manual operation | Accessory handle operation | Structural style | Medium-line type, non-pin type |
Limit | Electrical and mechanical double limit | Temperature | EPDM≤80℃；NBR≤68℃ |
Protection level | IP-67 (Explosion-proof Shell: Exd ll BT4IP67 Optional) | Applicable medium | Water,air and natural gas |
Input signal | 0-10,1-5VDC/4-20mA (Intelligent) | Characteristic | Wide use, low overall cost, large flow and small flow resistance |

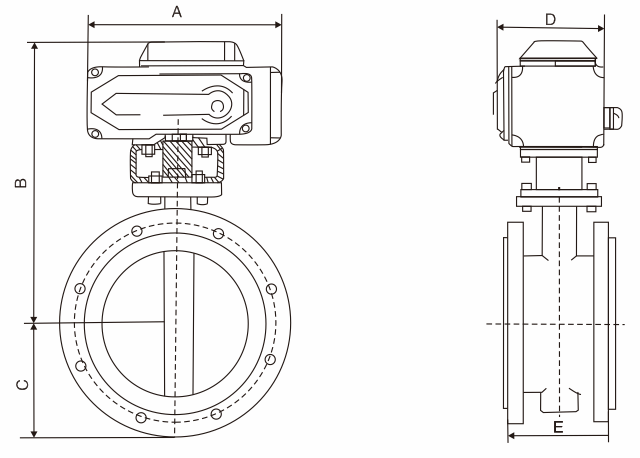

Main Outline Connection Size
Nominal diameter | A | B | C | D | E | Rated power | Rated current |
Pressure | 1.0/1.6 | 1.0/1.6 | 1.0/1.6 | 1.0/1.6 | 1.0/1.6 | ||
40 | 155 | 349 | 57 | 104 | 108 | 15W | 0.2A |
50 | 155 | 353 | 62 | 104 | 108 | 15W | 0.2A |
65 | 155 | 362 | 70 | 104 | 112 | 15W | 0.2A |
80 | 155 | 368 | 89 | 104 | 114 | 15W | 0.2A |
100 | 208 | 392 | 106 | 115 | 127 | 25W | 0.5A |
125 | 208 | 407 | 120 | 115 | 140 | 25W | 0.5A |
150 | 208 | 446 | 132 | 115 | 140 | 25W | 0.5A |
200 | 256 | 489 | 164 | 127 | 152 | 50W | 0.8A |
250 | 256 | 514 | 200 | 127 | 165 | 50W | 0.8A |
300 | 256 | 568 | 238 | 127 | 178 | 90W | 1.0A |
350 | 288 | 629 | 280 | 164 | 190 | 150W | 1.2A |
400 | 288 | 662 | 302 | 164 | 216 | 150W | 1.2A |
450 | 288 | 693 | 335 | 164 | 222 | 150W | 1.2A |
500 | 288 | 729 | 360 | 164 | 229 | 150W | 1.2A |
