D7 Series manual diaphragm
D7 Series manual diaphragm
公稱通徑：DN10~80
驅(qū)動(dòng)方式：Manual, with closed peneumatied device
工作壓力：10bar(diaphragm is EPDM or EPM), 6bar(diaphragm is PTFE
工作溫度：150℃(According to the conditions of rse)
隔膜材料：EPDM, FPM, PTFE
閥體材料：Stainless steel 1.4435=316L
接口方式：Tri-clamp connection see below table
其他接口方式：Welding flange, thread
制造標(biāo)準(zhǔn)：GB, DIN, ISO, SMS
shared：
Technical Data
Diaphragm size(AXB) |
25x25 |
37x33 |
54x45 |
70x65 83x78 |
Body Size (DN) | DN8-DN10 | DN15 | DN20-32 | DN40 DN50 |
Working Pressure(EPDM) | Max.6bar | Max.6ar | Max.6ar | Max.6ar |
Working Pressure(PTFE) | Max.6bar | Max.6ar | Max.6ar | Max.6ar |
Working Temp(EPDM) | Max.130℃ | Max.130℃ | Max.130℃ | Max.130℃ |
Working Temp(PTFE) | Max.150℃ | Max.150℃ | Max.150℃ | Max.150℃ |

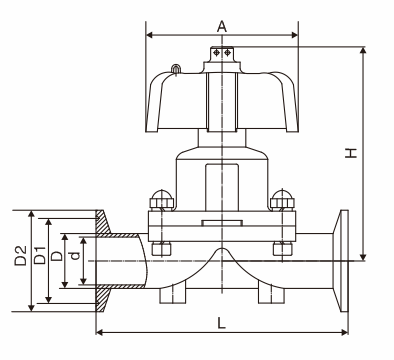

Main Outline Connection Dimention
Model | Specifications D | Actuator mm | L | A | H | E | H5-L | K5-L | K5-ΦD | F5-L |
DN10 | 3/8" | Φ50 | 68 | 165 | 120 | 64 | - | 120 | 50.5 | - |
DN15 | 1/2" | Φ50 | 85 | 172 | 137 | 64 | 120 | 120 | 50.5 | 120 |
DN20 | 3/4" | Φ50 | 95 | 178 | 145 | 64 | 130 | 140 | 50.5 | 130 |
DN25 | 1" | Φ50 | 100 | 210 | 165 | 64 | 140 | 160 | 50.5 | 140 |
DN32 | 1-1/4" | Φ63 | 118 | 220 | 180 | 80 | 150 | 175 | 50.5 | 150 |
DN40 | 1-1/2" | Φ63 | 125 | 228 | 190 | 80 | 180 | 190 | 64.0 | 180 |
DN50 | 2" | Φ80 | 145 | 268 | 245 | 100 | 195 | 210 | 77.5 | 195 |
DN65 | 2-1/2" | Φ80 | 185 | 282 | 300 | 100 | 230 | 225 | 77.5 | 230 |
DN80 | 3" | Φ100 | 210 | 368 | 340 | 126 | 250 | 255 | 91.0 | 250 |
DN100 | 4" | Φ125 | 235 | 420 | 395 | 156 | 280 | 280 | 119 | 280 |
